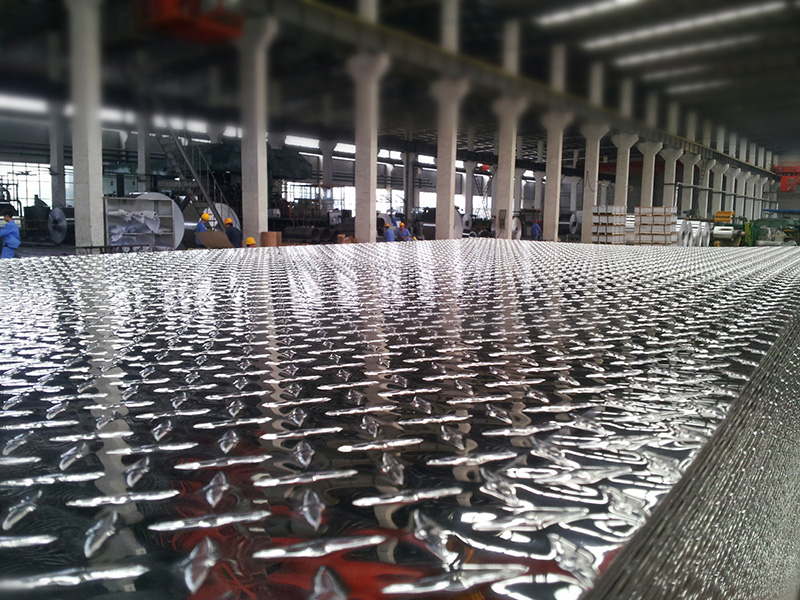

5754 Aluminum tread checkered plate sheet
Aluminium 5754 has excellent corrosion resistance especially to seawater and industrially polluted atmospheres.It has higher strength than 5251. This high strength makes 5754 highly suited to flooring applications.
Indestructible and resilient despite low weight
5754 Aluminum tread checkered plates sheets are very resilient against aggressive substances and therefore, they regarded as indestructible. Due to their durability, they are used in many different areas because they do not lose their shape or look, even after a long time. Whether industrial floors, airplanes, ships and vehicles, or stairs indoors or outdoors -5754 aluminium checker plates are a popular material which is appreciated for its excellent properties, the high resilience and the low weight. Even designers use these plates due to their decorative look.
Attractive pattern ensures slip resistance
During production, the pattern is applied to the plate by forming rolls which are pressed onto the plate with a large force. In doing so, the bottom of the plate remains plain. It is not possible to emboss the aluminium plate subsequently.
Due to the diagonally finned structure, the plate becomes slip-resistant which is why it is also suitable for use outdoors and in wet areas. In addition to the finned structure, there are many other shapes and patterns which provide the same characteristics.

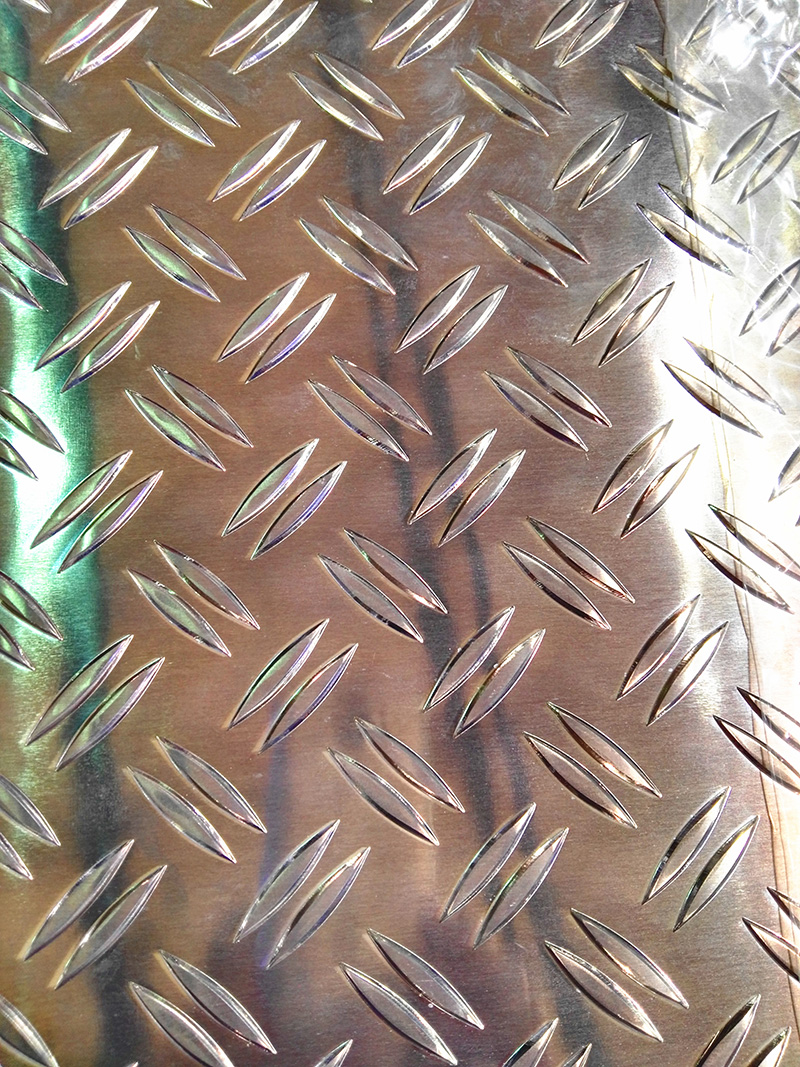

Depending on the type of plate, 1 to 5 bars are arranged next to each other, forming a checked pattern. It is differentiated between 1 bar(diamond), 2 bar, 3-bar and 5-bar patterns.
|
Alloy
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Ni
|
Zn
|
Ti
|
Ga
|
V
|
Each
|
Total
|
Alu
|
|
5754
|
0.4
|
0.4
|
0.10
|
0.50
|
2.6--3.6
|
0.30
|
-
|
0.20
|
0.2
|
-
|
-
|
0.05
|
0.15
|
Remainder
|
|
Alloy
|
1060, 1100, 1200, 3003, 3105, 5005, 5052, 5251, 5754, 5454, 5154, 5083, 5086 6061, 6082
|
|
Temper
|
H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F
|
|
Surface
|
Bright finish, Mill finish
|
|
Bar Difference
|
1 bar (Diamond), 2 bar, 3 bar, 5 bar
|
|
Available Dimension
|
|
|
Mill finish Surface
|
Bright finish Surface
|
|
Thickness (mm)
|
1.00---6.50mm
|
1.20---6.50mm
|
|
Pattern height
|
Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm
|
Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm
|
|
Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm
|
Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm
|
|
Sheet Thickness above 2.0mm, bar height: 1.50mm
|
Sheet Thickness above 2.0mm, bar height: 1.50mm
|
|
Width (mm)
|
Maximum 1500mm
|
Maximum 1650mm
|
|
Length (mm)
|
Maximum 6000mm
|
Maximum 6000mm
|
|
Paper interleaves
|
On request for selected
|
On request for selected
|
|
Normal size
|
1200×2400mm, 1219×2438mm, 1219×3048mm
|
1200×2400mm, 1219×2438mm, 1219×3048mm
|
Application
A. 5754 Aluminum tread checkered plate sheet has good skid resistance. So it is usually used in the loading ramps, trench covers, dock flooring, stair treads and even for the car, truck, ambulance and fire truck.
B. It has the decorative function, so it can be used as decoration wall panels, cabinet and ceilings.
C. Because of the anti- corrosion, it can be used in the chemical industry, or in the decoration of the ship and port facilities.
Compliance with international standards
EN 573-3 Aluminium and aluminium alloys - Chemical composition and form of wrought products – Part 3: Chemical composition and form of products
EN 1386 Aluminium and aluminium alloys - Tread plate - Specifications
EN 15088 Aluminium and aluminium alloys - Structural products for construction work - Technical conditions for inspection and delivery
|
|
